ZLF型氟塑立式长轴液下泵

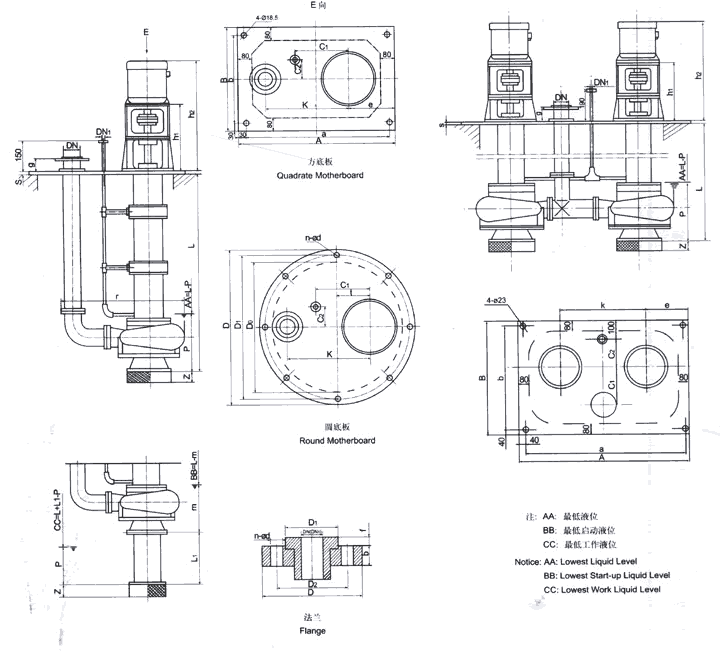

■外型尺寸图
|
| ■法兰尺寸
|
|
|
GB-9119.6-88
|
GB-9119.8-88
|
|
DN1
|
DN
|
|
15
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
350
|
400
|
500
|
|
D
|
80
|
185
|
200
|
220
|
250
|
285
|
340
|
395
|
445
|
505
|
565
|
670
|
|
D1
|
38
|
118
|
132
|
156
|
184
|
211
|
260
|
310
|
360
|
410
|
470
|
570
|
|
D2
|
55
|
145
|
160
|
180
|
210
|
240
|
295
|
350
|
400
|
460
|
515
|
620
|
|
b
|
12
|
20
|
20
|
22
|
22
|
24
|
28
|
28
|
28
|
30
|
32
|
34
|
|
f
|
2
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
4
|
|
n-φd
|
4-φ11
|
4-φ18
|
8-φ18
|
8-φ18
|
8-φ18
|
8-φ22
|
8-φ22
|
12-φ22
|
12-φ22
|
16-φ22
|
16-φ26
|
20φ26
|
|
|
|
|
