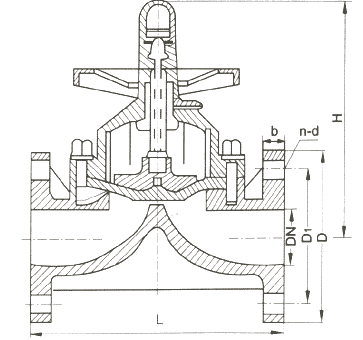

| ■性能参数及外形尺寸
|
|
|
|
公称通径
|
尺寸
|
工作压力
（Mpa）
|
工作温度
℃
|
重量
≈kg
|
|
DN
|
D
|
D1
|
L
|
b
|
H
|
n
|
d
|
F
|
R
|
P
|
F
|
R
|
P
|
F
|
R
|
P
|
|
15
|
95
|
65
|
125
|
14
|
125
|
4
|
14
|
0.6
|
0.6
|
0.5
|
200
|
100
|
120
|
1.8
|
0.8
|
1.2
|
|
20
|
105
|
75
|
135
|
16
|
130
|
4
|
14
|
0.6
|
0.6
|
0.5
|
200
|
100
|
120
|
2.2
|
0.9
|
1.6
|
|
25
|
115
|
85
|
145
|
16
|
145
|
4
|
14
|
0.6
|
0.6
|
0.5
|
200
|
100
|
120
|
2.5
|
1.0
|
1.8
|
|
32
|
135
|
100
|
160
|
16
|
170
|
4
|
18
|
0.6
|
0.6
|
0.5
|
200
|
100
|
120
|
3
|
0.3
|
2.4
|
|
40
|
145
|
110
|
180
|
16
|
190
|
4
|
18
|
0.6
|
0.6
|
0.5
|
200
|
100
|
120
|
4
|
1.8
|
3
|
|
50
|
160
|
125
|
210
|
18
|
215
|
4
|
18
|
0.6
|
0.6
|
0.4
|
200
|
100
|
120
|
6
|
2.5
|
3.9
|
|
65
|
180
|
145
|
250
|
22
|
280
|
4
|
18
|
0.6
|
0.6
|
0.4
|
200
|
100
|
120
|
9
|
5
|
7.8
|
|
80
|
195
|
160
|
300
|
25
|
300
|
4
|
18
|
0.6
|
0.6
|
0.3
|
200
|
100
|
120
|
11
|
6.1
|
8.9
|
|
100
|
215
|
180
|
350
|
25
|
340
|
8
|
18
|
0.6
|
0.6
|
0.3
|
200
|
100
|
120
|
18
|
9.7
|
15
|
|
125
|
245
|
210
|
400
|
30
|
420
|
8
|
18
|
0.4
|
0.4
|
0.2
|
200
|
100
|
120
|
25
|
13.5
|
21
|
|
150
|
280
|
240
|
460
|
30
|
480
|
8
|
23
|
0.4
|
0.4
|
0.2
|
200
|
100
|
120
|
38
|
25
|
37
|
|
200
|
335
|
295
|
570
|
35
|
625
|
8
|
23
|
0.4
|
0.4
|
0.2
|
200
|
100
|
120
|
58
|
36.5
|
56
|
|
|
|
